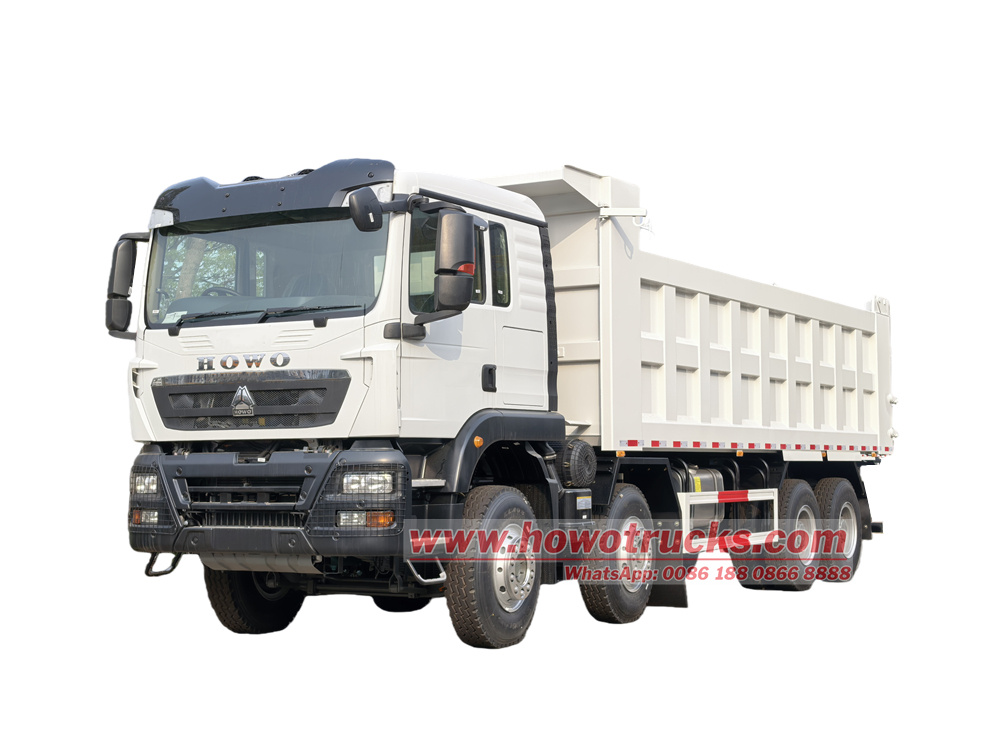

Tanzania HOWO 12 wheeler construction dump truck

Tanzania HOWO 12 wheeler construction dump truck

The Howo 8x4 30-ton dump truck adopts a Sinotruk Howo TX 371HP right-hand drive chassis with a wheelbase of 1800+3825+1350mm, a Sinotruk WD615.47 engine, and an HW19710 transmission. The superstructure is a heavy-duty dump body with dimensions of 7200x2400x1500mm, made of carbon steel with 6mm thick sides and 8mm thick bottom. The tailgate can be opened, the side panels have a grid pattern and are fully welded, and it has a front-mounted hydraulic lift with a lifting angle ≥ 45°.

  • Capacidade de trabalho :

    30tons
  • Tipo de cabine :

    Howo TX-F one and half row cabin
  • Sistema de acionamento :

    8x4,RHD
  • Distância entre eixos (mm) :

    1800+3825+1350mm
  • Específico do motor :

    371 HP / Sinotruk WD615.47
  • Caixa de engrenagens :

    Sinotruk HW19710 transmission, manual
  • Eixo dianteiro ( Kg ) :

    6500/7000
  • Eixo traseiro ( Kg ) :

    17500(2 axles)
Novos Produtos

The Tanzania HOWO 12 wheeler construction dump truck is an engineering vehicle specifically designed for heavy-duty transportation in Tanzania's mining and infrastructure sectors. It utilizes a powerful Sinotruk 371HP engine, features a large cargo box with robust construction and full welding, ensuring high load-bearing capacity and clean unloading. It meets the needs of transporting high-strength sand, gravel, earth, and mineral materials. The entire vehicle is heavy-duty, sturdy, and durable, capable of carrying up to 30 tons.



*HOWO RHD 30T Dump Truck

-----------------------------------------------------------------

Tanzania HOWO 12 wheeler construction dump truck



 Product Technological Parameters:



HOWO TX RHD 8x4 dump truck

Vehicle parameters

Overall dimensions

10050×2550×3400mm

GVW/Curb weight

31000 /16850kg

Dump body dimensions

7200×2400×1500mm

Loading capacity

30tons

Chassis parameters

Chassis brand

HOWO TX

Wheel base

1800+3825+1350mm

Drive type

8x4,RHD

Maximum speed

89km/h

Cab

Configuration

HOWO TX-F cab, RHD steering gear

Color

White,other color is optional

Engine

Model

SINOTRUK WD615.47

Emission

Euro 2

Type

6 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,
diesel engine

Horse power

371HP/ 273kW

Displacement

9.726L

Max torque

1500N.m

Tire

Size

12.00R20

Number

12+1 nos

Transmissions

HW19710 transmission, 10 speed forward 2 reverse.

Dump truck structure parameters

Dump body dimensions

7200×2400×1500mm

Material

Carbon steel

Thickness

Side 6mm bottom 8mm

Lifting position

Front lifting

Lifting angle

≥45°

Color and Logo

Optional

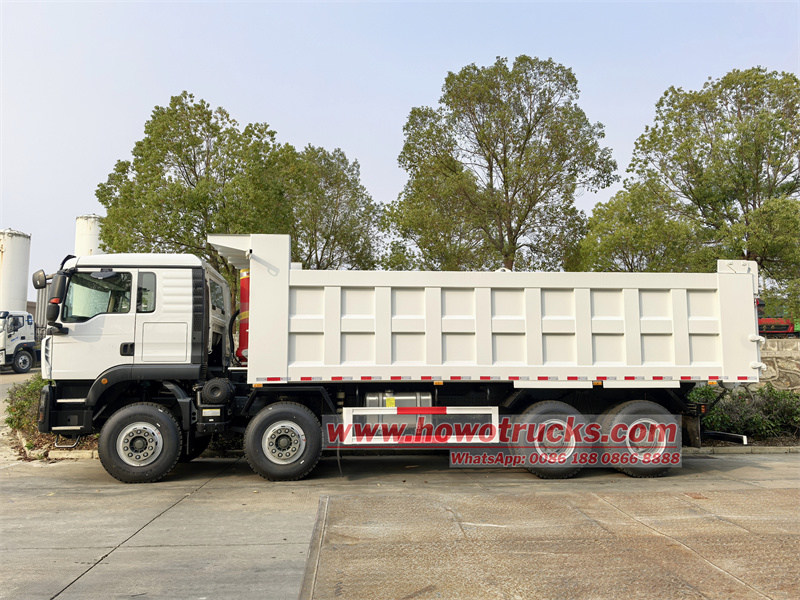

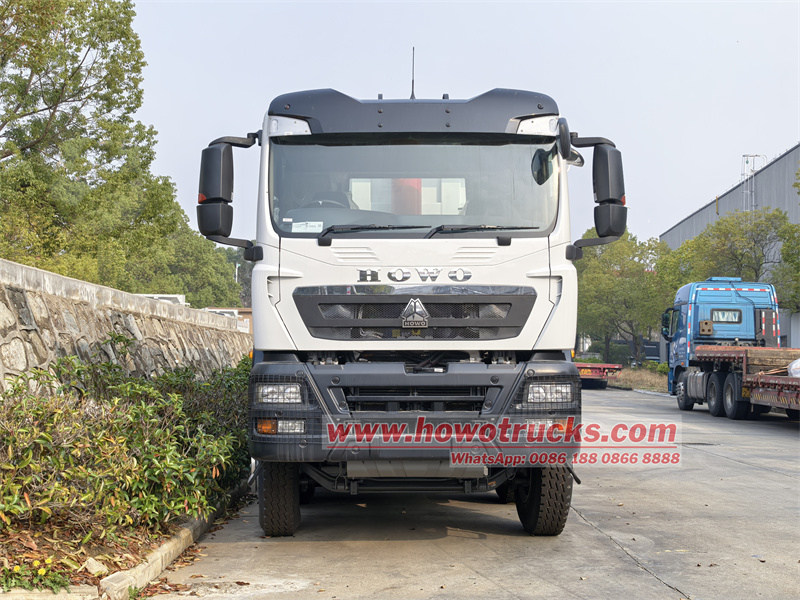

HOWO TX RHD dump truck



 Chassis:

• Drive Type: 8×4 heavy-duty drive, rated load capacity 30 tons

• Cab: Right-hand drive layout, Howo TX cab

• Wheelbase: 1800+3825+1350mm

• Powertrain: Sinotruk WD615.47 inline six-cylinder diesel engine, 371HP high horsepower output, maximum torque 1500N.m

• Transmission System: HW19710 ten-speed gearbox

• Tires: 12.00R20, 12+1 tires

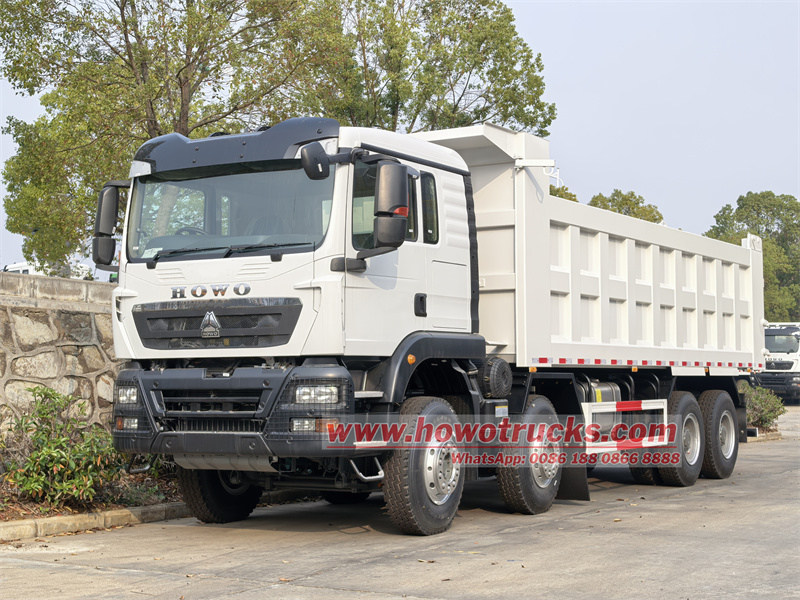

HOWO TX RHD heavy duty dump truck

 Upper Structure Configuration:



• Dump Body Type: Heavy-duty self-unloading cargo box



• External Dimensions: 7200×2400×1500mm, meeting the needs of transporting large quantities of bulk materials such as sand, gravel, ore, and coal.



• Box Material: High-strength carbon steel, with 6mm thickened side plates and 8mm thickened bottom plates for wear resistance and impact resistance.

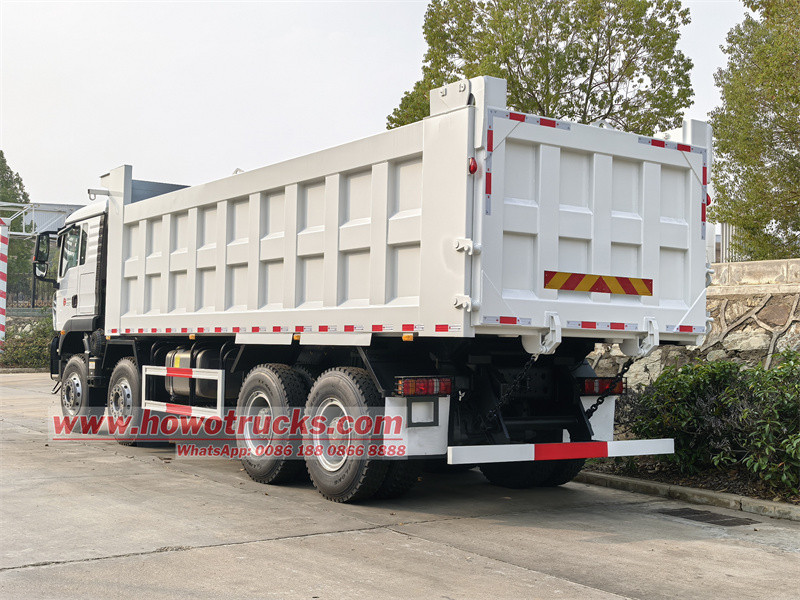

HOWO 8X4 RHD 30tons dumper truck



• Structural Process: Side plates feature a grid-like reinforcing rib design, fully welded for resistance to expansion and deformation.

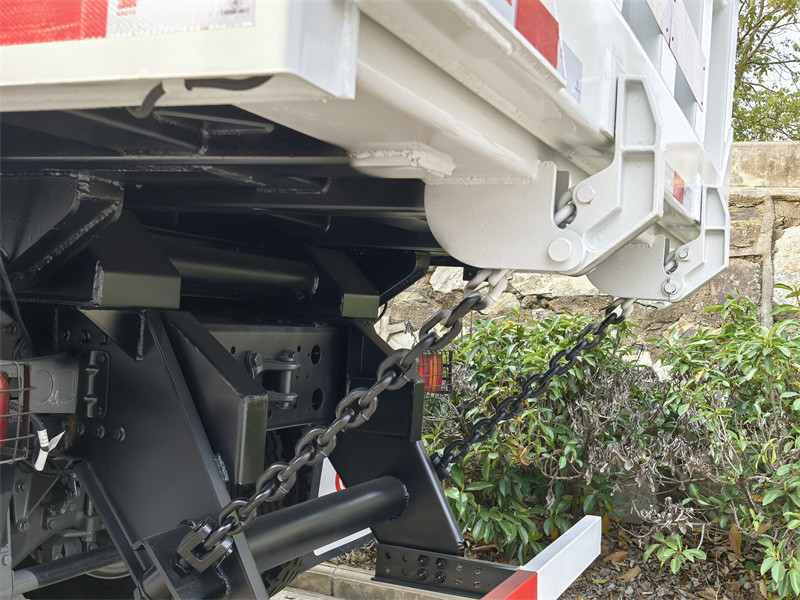

• Tailgate Design: Flexible opening with a locking mechanism.

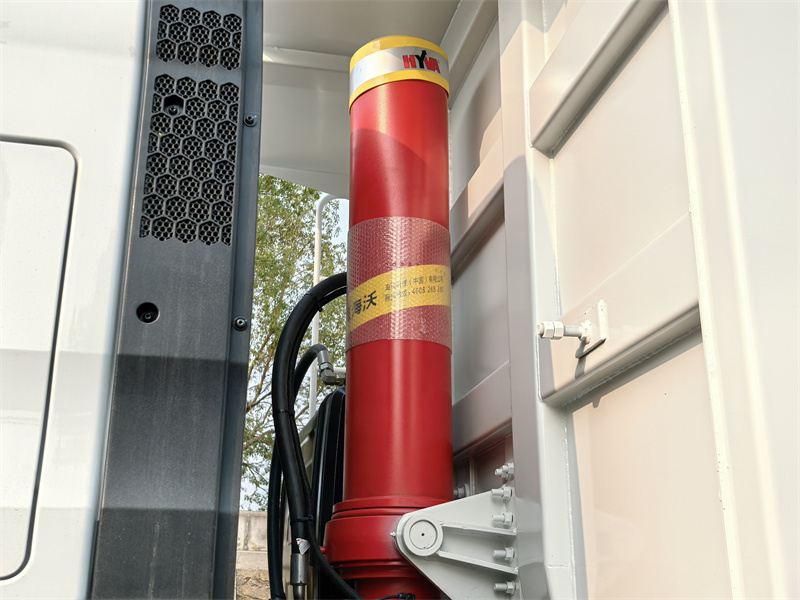

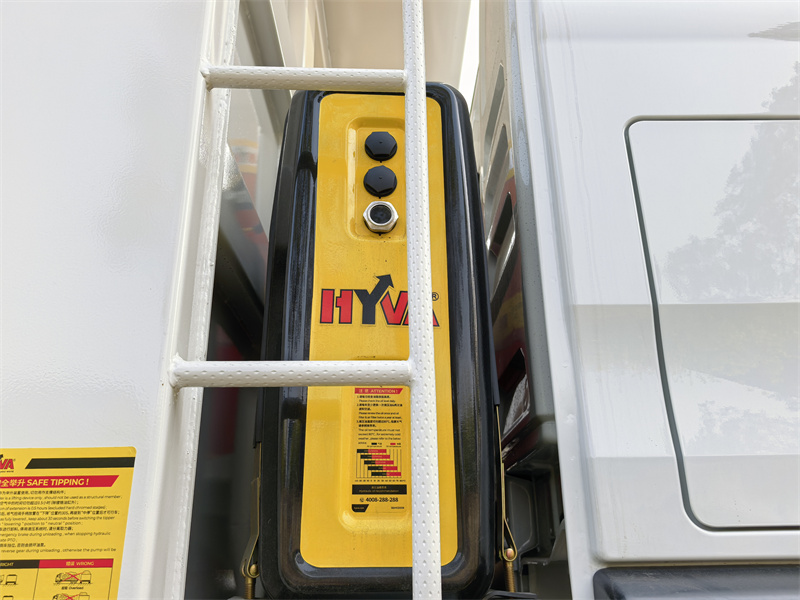

• Lifting System: Front-mounted Hyva hydraulic lifting mechanism with a lifting angle greater than 45°, ensuring clean and thorough unloading and smooth, powerful lifting.

  • HOWO TX371 8x4 RHD 30T tipper truck
  • HOWO TX371 8x4 RHD 30T tipper truck
  • HOWO TX371 8x4 RHD 30T tipper truck



Applications in Tanzania:

• Mining: Transporting heavy materials such as ore and slag.



• Infrastructure Construction: Short-distance transshipment of sand, gravel, and concrete raw materials.



• Logistics and Transportation: Bulk cargo distribution between urban and rural areas.



• Municipal Engineering: Road maintenance, earthwork removal, etc.

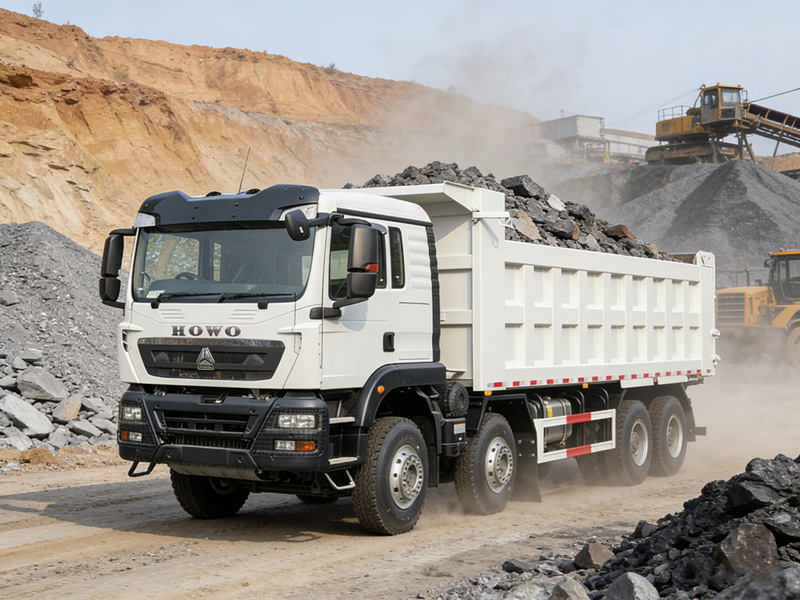

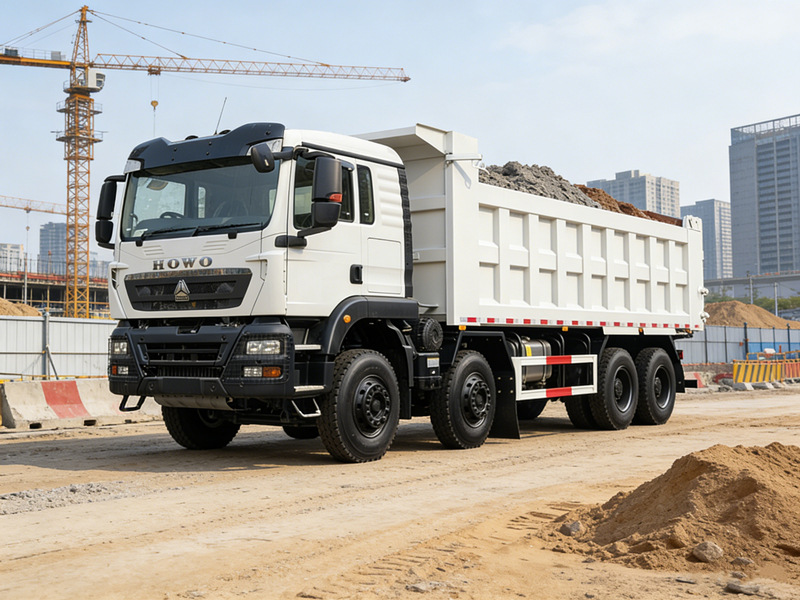

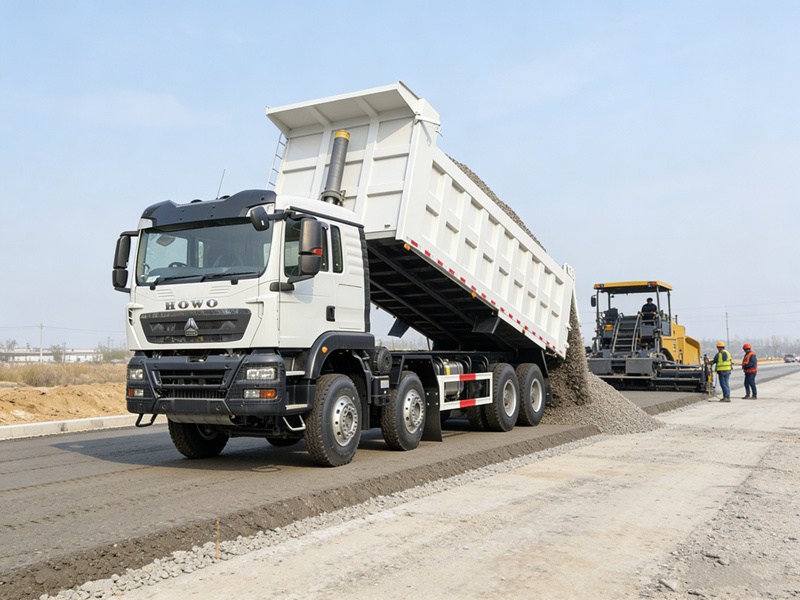

  • Howo 8x4 30-ton dump truck
  • Howo 8x4 30-ton dump truck
  • Howo 8x4 30-ton dump truck

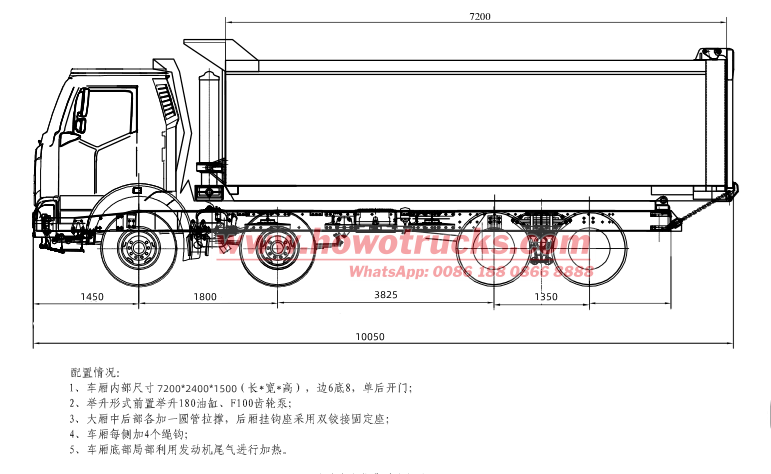

Technical drawing of HOWO TX371 RHD dump truck
