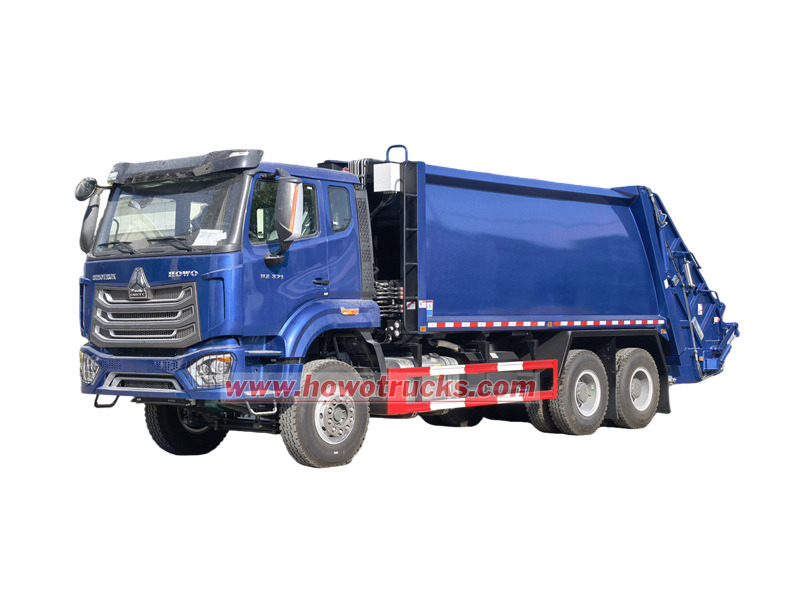

HOWO NX 20CBM Refuse Compactor Truck Technical Specifications

HOWO NX heavy-duty garbage compactor truck (also known as HOWO refuse compactor, HOWO waste compactor truck, HOWO rear loader) is a sanitation vehicle specifically designed for urban waste collection, transportation, and compression. Its core function is to reduce the volume of garbage through a hydraulic compression device, thereby increasing the amount of garbage transported per trip and reducing transportation costs and frequency.

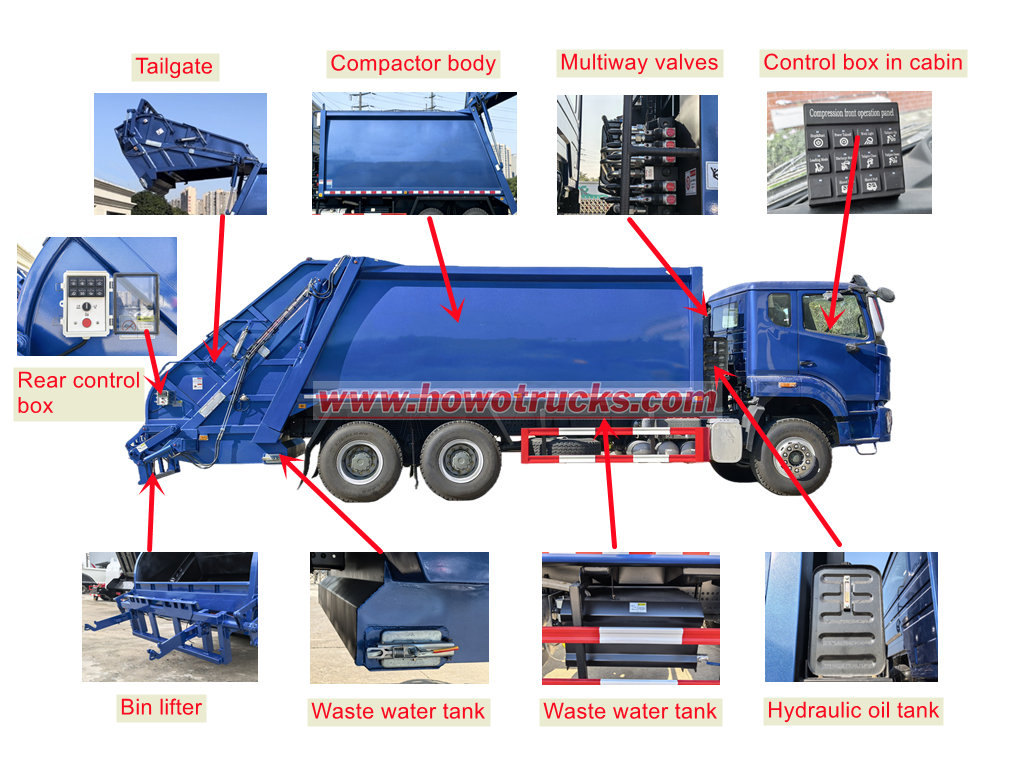

Structure of HOWO 20CBM refuse compactor truck

The HOWO NX 20CBM waste compactor truck consists of a HOWO 6×4 NX chassis, a 20CBM compactor body, a compression device, a hydraulic system, and a control system. It is widely used in residential communities, municipal sanitation, commercial areas, industrial parks, and other scenarios, and is an indispensable piece of equipment in urban waste management systems.

Features of HOWO NX 20CBM garbage compactor

The core features of the HOWO NX 20CBM Rear Load Garbage Truck include:

1. Efficient Compression: Uses a hydraulic system for powerful waste compression, significantly increasing single-transport capacity and reducing transfer frequency. The compression ratio reaches 1:4.
2. Leak-Proof Design: The body is a fully sealed structure with two wastewater collection tanks, effectively preventing waste spillage and wastewater leakage during transport, thus avoiding secondary pollution.
3. Intelligent Operation: Equipped with a CAN bus system, supporting automatic, manual, and remote control operation modes, enhancing operational safety and convenience.
4. Robust Structure: The compactor body is made of T420 high-strength wear-resistant steel, with a reinforced design of 5mm walls and a 6mm floor, ensuring durability.

Chassis	HOWO NX 6×4
Engine	WD615.47, 371HP, diesel engine
Compactor body volume	20CBM
Body material	T420 high strength steel, walls 5 mm, floor 6mm
Hydraulic system pressure	≥18 Mpa
Tailgate single cycle time	≤25 S
Tailgate lifting time	≤15 S
Discharging cycle time	≤110 S

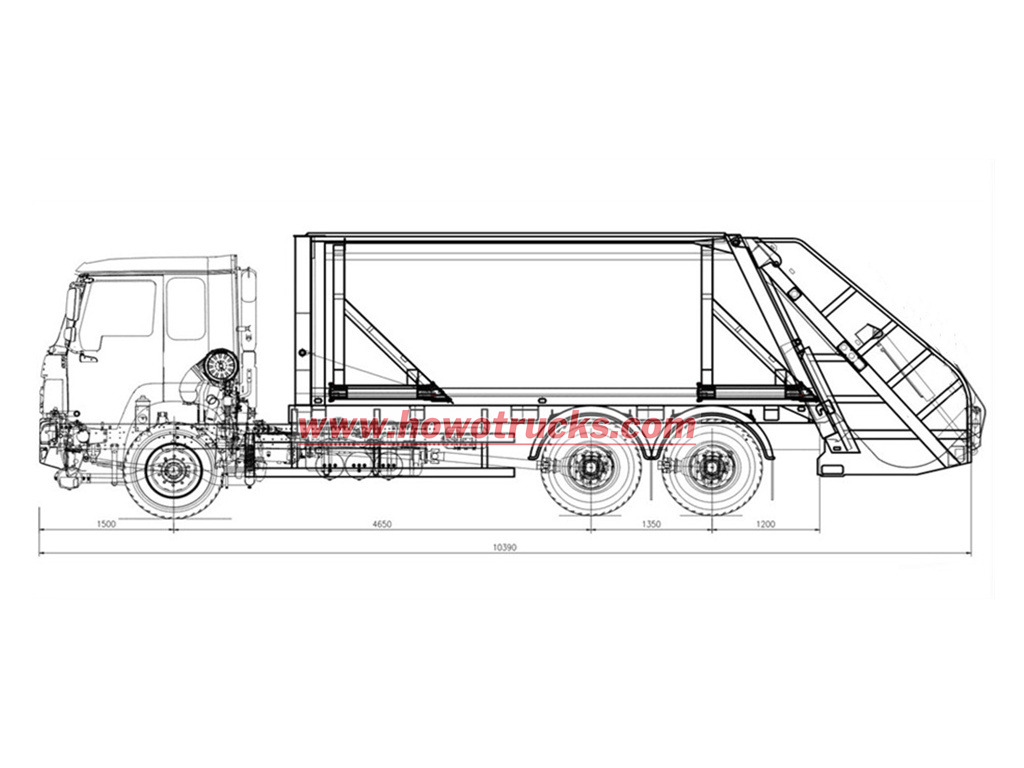

HOWO 20CBM rear loader technical drawing

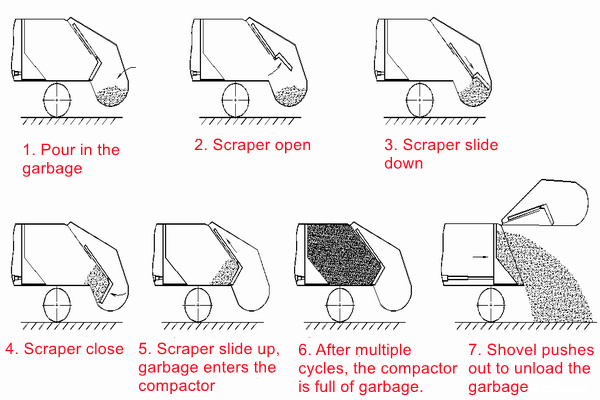

HOWO does HOWO heavy duty refuse compactor truck work?
