Dubai HOWO M7 12000L refined oil bowser truck

Dubai HOWO M7 12000L refined oil bowser truck

Powered by a high-performance YC6J220-33 6-cylinder in-line water-cooled turbocharged intercooled diesel engine, this HOWO fuel tanker boasts a maximum power output of 220 horsepower. It is matched with a 10 forward and 2 reverse speed transmission system and a reinforced diaphragm clutch assembly. This premium powertrain configuration provides robust power reserve and precise, responsive control, enabling the truck to adapt seamlessly to various complex road conditions and complete fuel transportation tasks efficiently and stably.

  • Capacidade de trabalho :

    12000L
  • Tipo de cabine :

    HOWO single cabin, with one sleeper
  • Sistema de acionamento :

    4x2
  • Distância entre eixos (mm) :

    4700
  • Específico do motor :

    YC6J220-33
  • Caixa de engrenagens :

    HW19710C, 10 forwards & 2 reverses
  • Eixo dianteiro ( Kg ) :

    7500
  • Eixo traseiro ( Kg ) :

    13000
Novos Produtos

Equipped with a high-performance YC6J220-33 6-cylinder in-line water-cooled turbocharged intercooled diesel engine, this HOWO fuel tanker delivers a maximum power of 220 horsepower. It is paired with a 10-forward and 2-reverse transmission system and a reinforced diaphragm clutch assembly, forming a premium powertrain that offers sufficient power reserve and precise, responsive control. This configuration enables the truck to smoothly adapt to various complex road conditions and complete fuel transportation tasks efficiently and stably.

Designed for large-volume fuel transport needs, the tanker has a genuine actual tank capacity of 12,000 liters. The tank body is made of high-quality Q235 carbon steel with a wall thickness of no less than 4mm, ensuring excellent durability, pressure resistance and corrosion resistance for long-term use. Fitted with top-tier Chinese brand fuel pumps, valves, pipeline systems and a full set of professional fuel distribution devices, the truck ensures stable fuel delivery, high working efficiency and reliable operational safety.

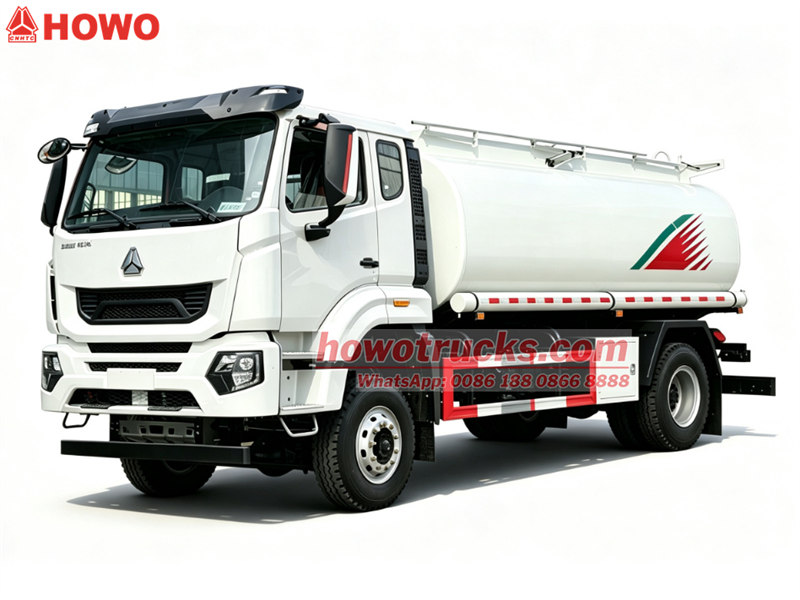

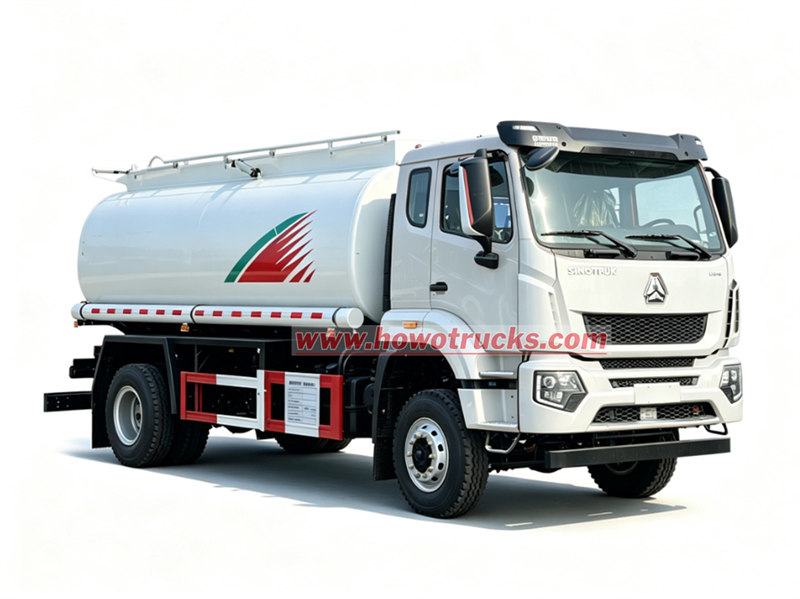

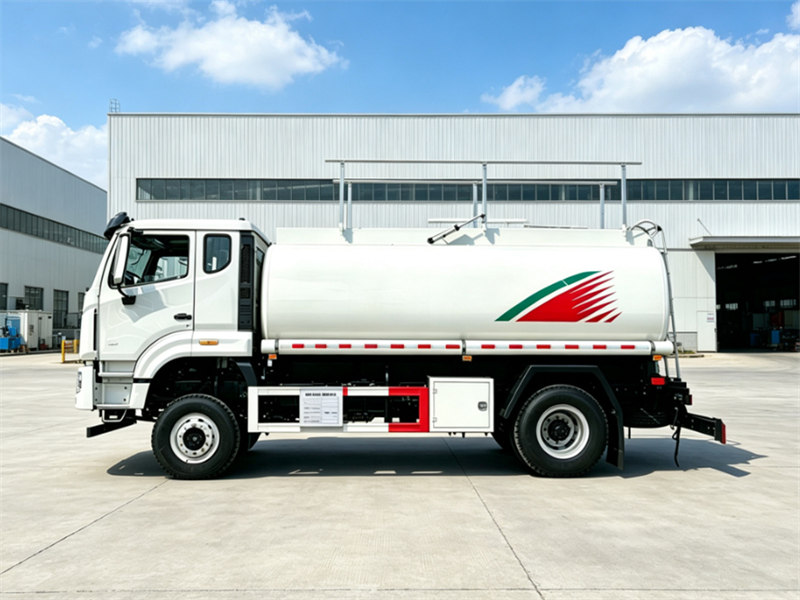

 HOWO M7 4x2 fuel tank truck

*HOWO M7 Fuel Bowser Tank Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in HOWO truck area,

guarantee all products Brand-New and High-Quality.



Ⅰ.Product Definition and Introduction « « «

Manufacturer: CS Trucks Group

Features:





Chassis: SINOTRUK 4x2 heavy duty chassis, equipped with a 220HP WEICHAI diesel engine, ensuring strong power and stable performance for heavy-duty operations.
Tank Capacity: 12 CBM, available in 3 compartment or multi-compartment design, meeting diverse storage and transportation needs for different fuel types.
Tank Construction: Made of 5mm Q235 carbon steel plate with anti-corrosion coating, and reinforced with internal baffles to effectively suppress liquid surge during transportation, enhancing safety and durability.
Pumping & Dispensing System: Features a China famous brand pump driven by PTO, complete with a professional fuel dispenser and complete pipeline system, ensuring efficient and reliable fuel transfer and dispensing.
Operation Scope: Specifically designed for the transportation of gasoline, diesel, and fuel oil, as well as fuel station distribution and industrial fuel logistics, suitable for various commercial and industrial scenarios.

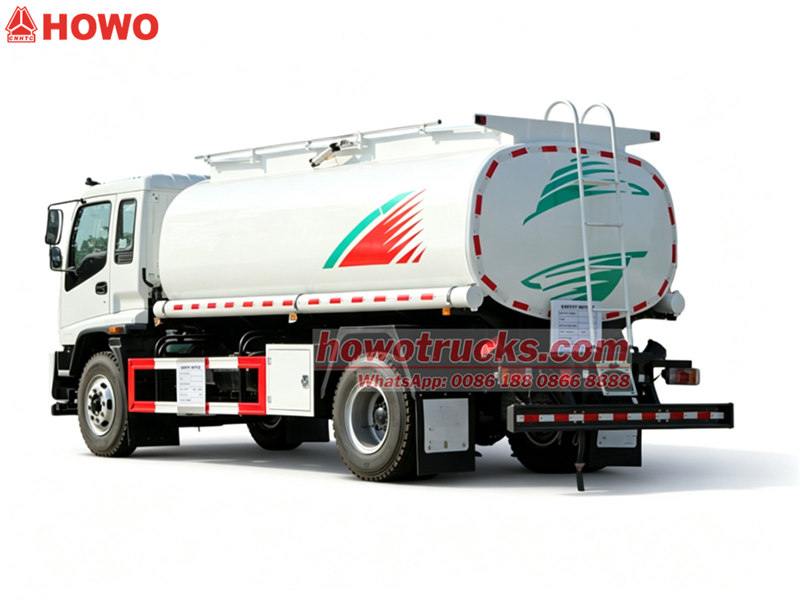

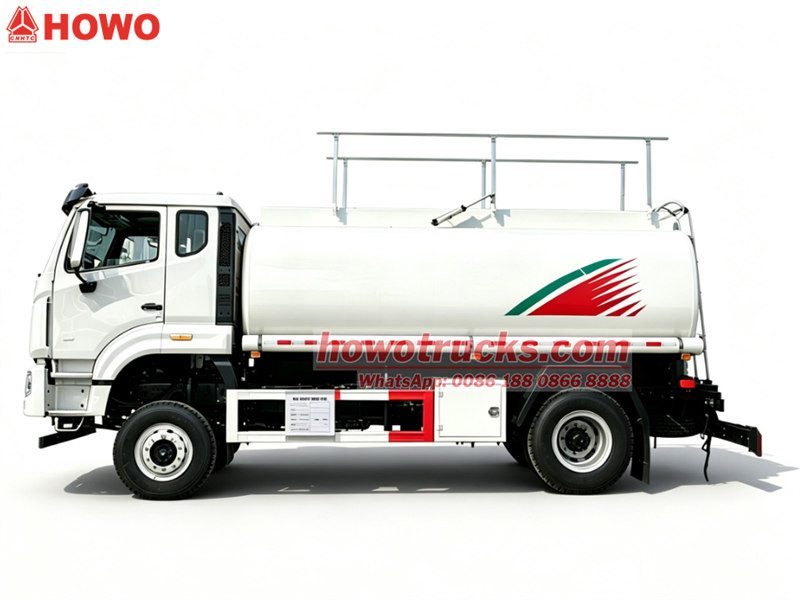

HOWO M7 12000L fuel pump truck



Ⅱ.Product Parameter For HOWO M7 Fuel Tank Truck  « « «

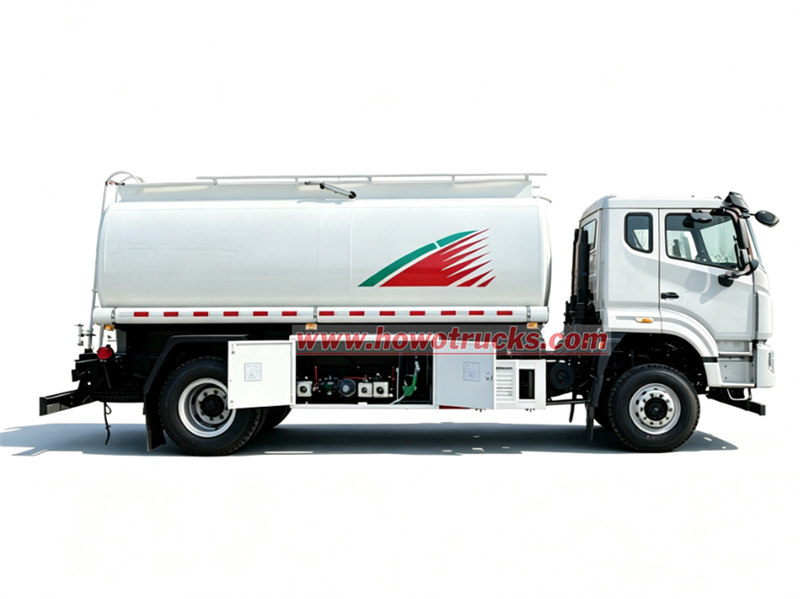

 HOWO M7 4x2 fuel pump truck


HOWO 4x2 Fuel Tank Truck

Drive system

4X2

Chassis

HOWO M7

Vehicle Main Dimensions

Dimensions(L x W x H)mm

8300*2580*3350

Wheel base (mm)

4700

Overhang (front/rear) (mm)

1380/1820

Approach/Departure angle(°)

22/17

Weight in KGS

Curb Weight

8800

GVW.

18000

Max. driving speed(km/h)

105

Engine

Model

YC6J220-33

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

220 HP

Emission standard

Euro 2

Gearbox

HW19710, 10 forwards & 2 reverse

Clutch

Reinforced diaphragm clutch

Steering Gear

Power steering, hydraulic steering with power assistance

Fuel tank (L)

200L

Tire

10.00R20  6 pcs+1 spare tire

Upper Body

Fact cubage

12000Liters

Protective material

Q235 carbon steel

Tank meterial

<5mm> carbon steel

Equipment

1.Equipped with China famous brand pump, valves and pipes, a set of Fuel Dispenser
2.Equipped  with a ladder on tank
3.It can be design to have several compartments according to your requirements
4.Equipped with speed limiter. The speed limit of 95 km/h

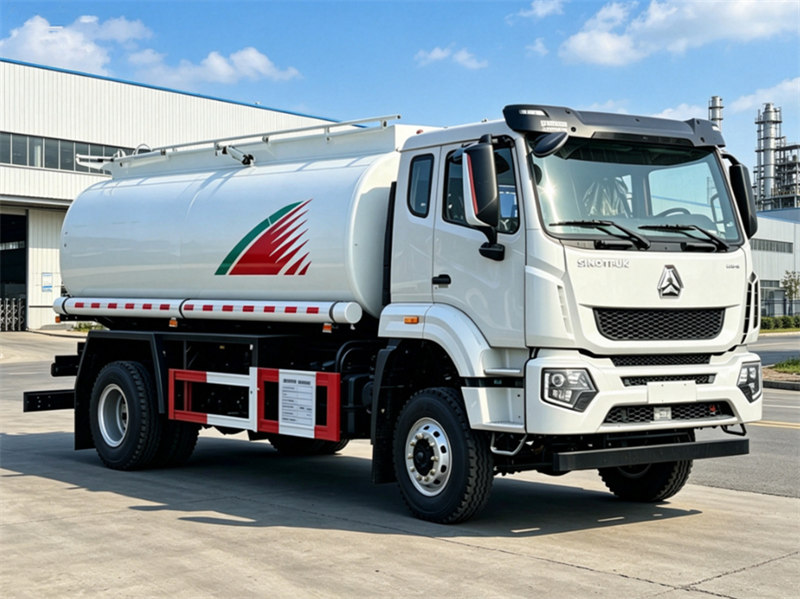

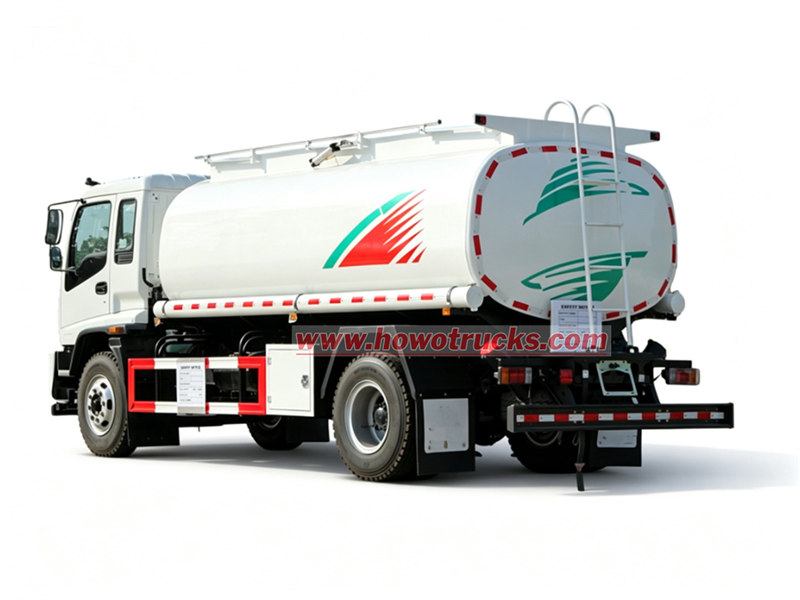

HOWO M7 12000L fuel tank truck



Ⅲ. HOWO Heavy 12000L Fuel Pump Truck  « « «

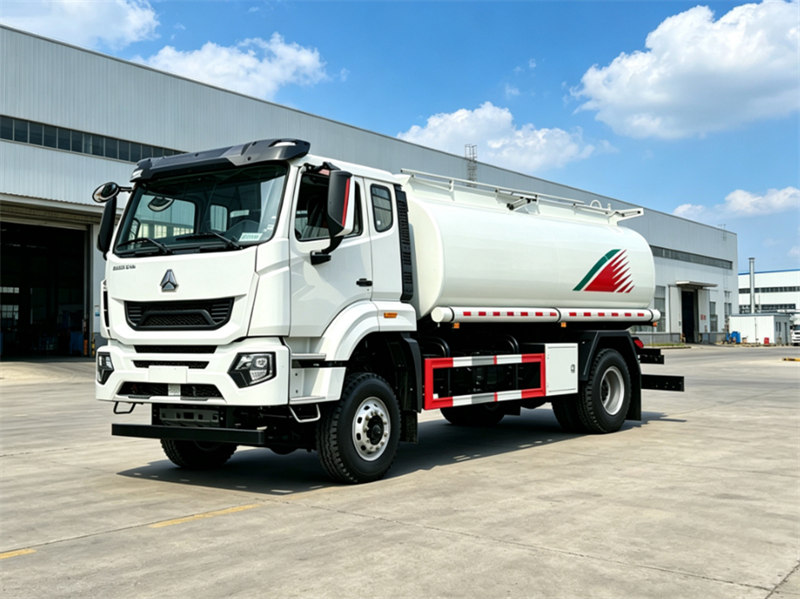

HOWO M7 12000L fuel tank truck

Custom‑built tank profiles are available upon request, including round, oval, rectangular and trapezoidal configurations to match varied project requirements.

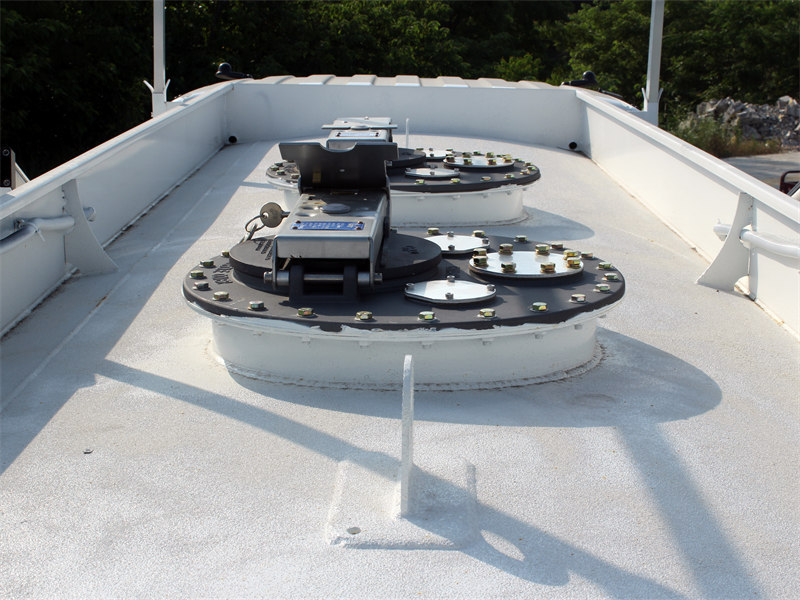

Tank top is fitted with essential safety components: manhole cover, breather valve, oil‑vapor recovery unit and protective guardrail.

A sediment sump is integrated at the tank bottom, alongside a drain valve mounted at the rear for easy waste‑liquid discharge.

Built‑in access ladders and walkways provide safe movement for operators to climb onto and off the tank.



HOWO M7 12000L fuel tank truck
Internal horizontal and vertical baffles are installed inside the tank, which effectively minimize liquid surges when the vehicle accelerates or decelerates.
The tank top assembly includes key components: tank manhole opening, breather valve, and oil‑vapor recovery system.
The φ500‑mm diameter manhole opening facilitates routine inspection and maintenance work.

Ⅳ.HOWO M7 Fuel Tank Truck Details « « «

The gear pump is the core component of an oil truck, acting as its "heart" for efficient fluid transfer. It operates via a pair of meshing gears inside the pump body, which work together to create pressure differentials and move oil.

When the drive gear shaft rotates counterclockwise, it turns the driven gear clockwise. This expands the right cavity (suction side) between the meshing gears, lowering pressure and forming a partial vacuum. Atmospheric pressure then pushes oil from the reservoir into the pump’s suction port, filling the gaps between gear teeth.



HOWO fuel tank truck



As the gears rotate, oil trapped in the tooth spaces is carried to the left cavity (discharge side). Here, gear meshing reduces the cavity volume, increasing pressure to force oil out through the discharge port. This continuous suction-discharge cycle delivers a steady oil flow to machinery lubrication points.



This simple, durable mechanism makes gear pumps highly reliable for oil truck use, ensuring consistent performance even in demanding conditions.



fuel pump fuel pump



Part Name

Qty.

Material

Pump Cover

1

Gray Cast Iron HT200

Pump Body

1

Gray Cast Iron HT200

Paper Gasket

1

Gear Shaft

1

45# Carbon Steel (z=10, m=4)

Driven Gear

1

45# Carbon Steel (z=10, m=4)

Driven Shaft

1

45# Carbon Steel

Nut

1

Q235-A Carbon Steel

Gland

1

Gray Cast Iron HT200

Steel Ball

1

45# Carbon Steel

Spring

1

65Mn Spring Steel

Adjusting Screw

1

Q235-A Carbon Steel

Protective Nut

1

Q235-A Carbon Steel



fuel pump

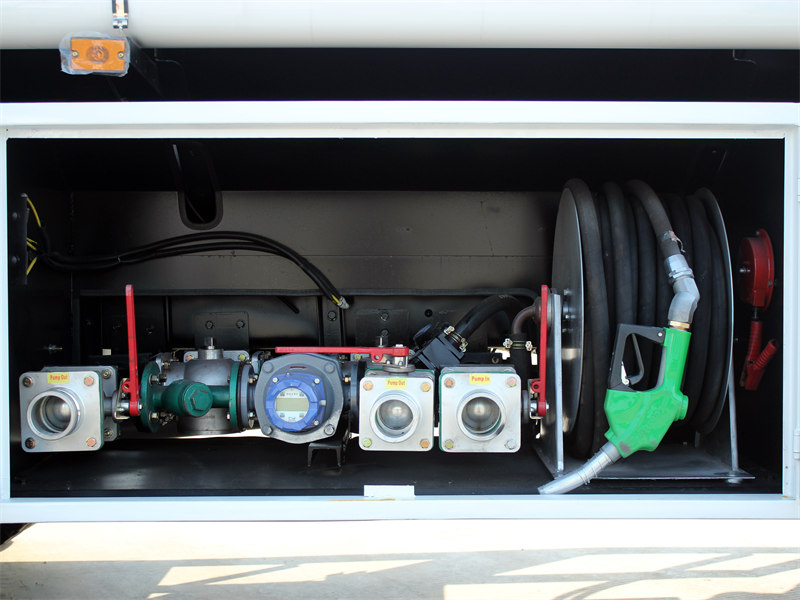

✦ Ⅴ.HOWO Fuel Truck Pipeline Operation Diagram « « «



 Pump out:

(1) Turn the four-position three-way ball valve mark point to the direction of forward B);

      Note: four-position three-way Ball Valve marks the direction of the direction of the valve closed, the other two sides for each other

(2) Open two-way Ball Valve 1 to pump oil;

(3) If using a refueling machine,close the two-way Ball Valve 1 and open the small copper valve,according to the specification of the tefueling machine set procedures can be       achieved refueling refueling machine.



Howo fuel tank truck



♦ Pump in:

(1) Connecting the two-way Ball Valve 2 with an oil pipeline and an oil source;

(2) After turning the mark point of the four-position three-way ball valve to(c).the other valves are closed to realize self-priming.

(3) Other functions:The user can adjust and realize various functions according to the oll circult principle.

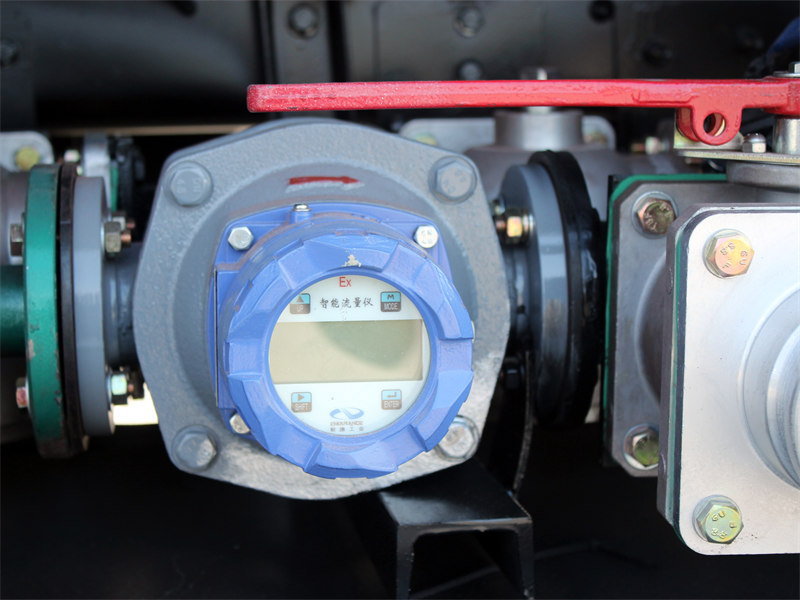

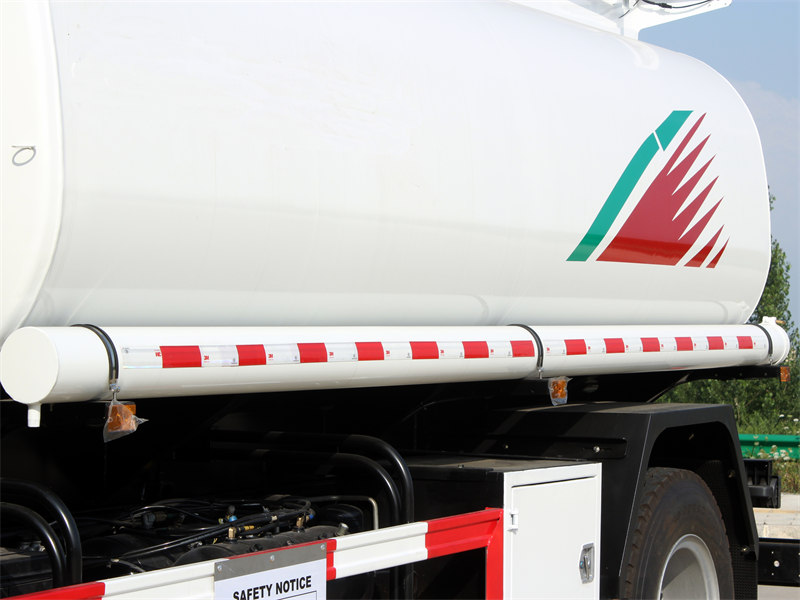

  • fuel tank truck
  • fuel tank truck
  • fuel tank truck



Ⅵ.HOWO Fuel Truck Safety Protection Devices « « «

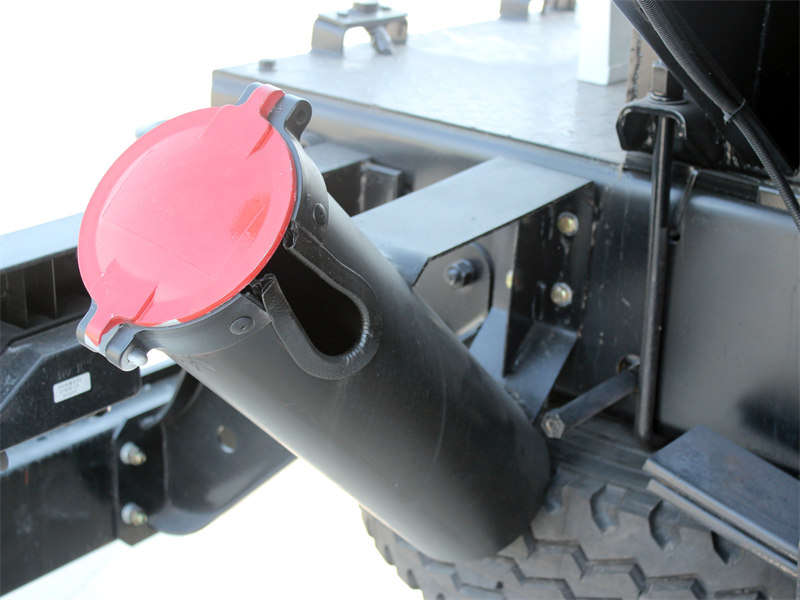

 The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.

 A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank. This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.

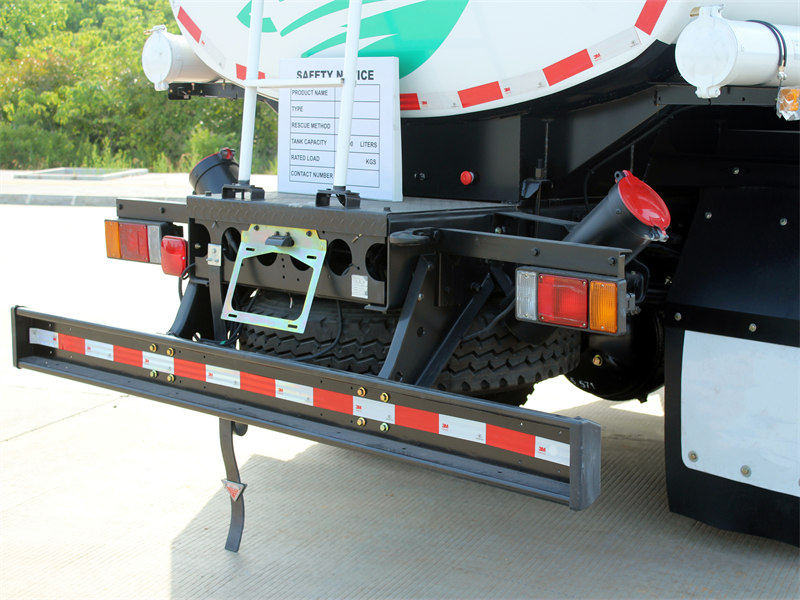

  • HOWO M7 12000L fuel tank truck
  • Howo heavy 12000L fuel tank truck
  • Howo 20ton crane truck

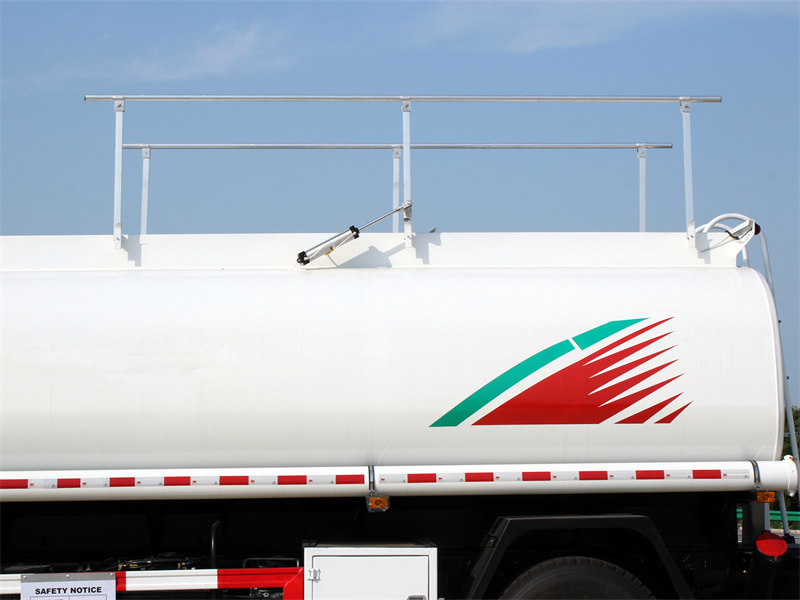

 To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.

 Fire extinguishers are provided on both sides of the oil tank.




⇒ Products--100% Customized Level One!
⇒ Transportation--100% Safety, Convenience, Efficient!
⇒ Services--7days + 24hours Safetify Service!


»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



China professional HOWO fuel tank truck supplier and exporter. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



HOWO heavy 12000L fuel tank truck



HOWO heavy 12000L fuel tank truck
