HOWO Euro 2 emission steel tanker fuel truck
The SINOTRUK HOWO 400HP oil truck is equipped with a luxurious cabin with two seats and a bed, equipped with air conditioning and electric windows. The entire vehicle is equipped with a dual-circuit compressed air brake system, the parking brake is spring energy type, and the auxiliary brake is engine exhaust brake. Optional equipment includes stainless steel and aluminum alloy oil tanks, pumps of various brands, and equipment equipped with flow meters, oil dispensers, hose reels and nozzles, liquid level gauges, etc.
Capacidade de trabalho :
30000LTipo de cabine :
HOWO single cabin, with one sleeperSistema de acionamento :
8x4Distância entre eixos (mm) :
1750+4600+1350Específico do motor :
WP12S400E201Caixa de engrenagens :
HW19710C, 10 forwards & 2 reversesEixo dianteiro ( Kg ) :
7500*2Eixo traseiro ( Kg ) :
13000*2The SINOTRUK HOWO 400HP steel tanker fuel truck is equipped with a luxurious cabin with two seats and a bed, equipped with air conditioning and electric windows. The entire vehicle is equipped with a dual-circuit compressed air brake system, the parking brake is spring energy type, and the auxiliary brake is engine exhaust brake. Optional equipment includes stainless steel and aluminum alloy oil tanks, pumps of various brands, and equipment equipped with flow meters, oil dispensers, hose reels and nozzles, liquid level gauges, etc.
The tanker features a genuine 30,000-liter actual tank capacity to meet large-volume fuel transport demands. The tank body is constructed from high-quality Q345 carbon steel with a wall thickness of no less than 4mm, ensuring outstanding durability, pressure resistance and corrosion resistance for long-term service. Fitted with top-tier Chinese brand fuel pumps, valves and pipeline systems, along with a complete set of professional fuel distribution devices, the truck guarantees stable fuel delivery, high working efficiency and reliable operational safety.

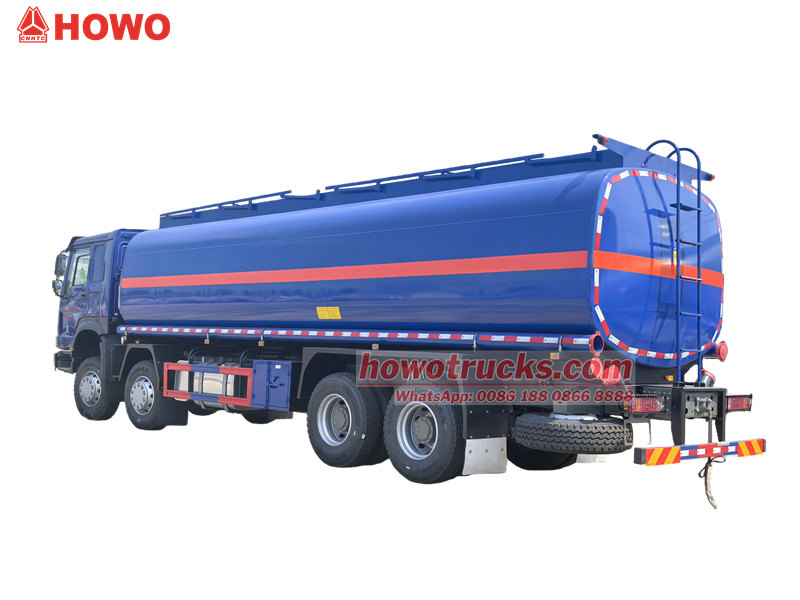

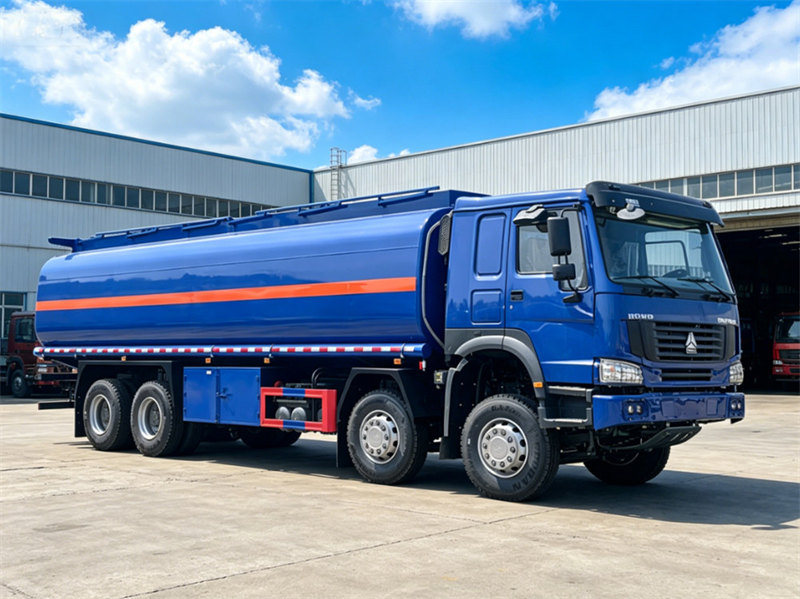

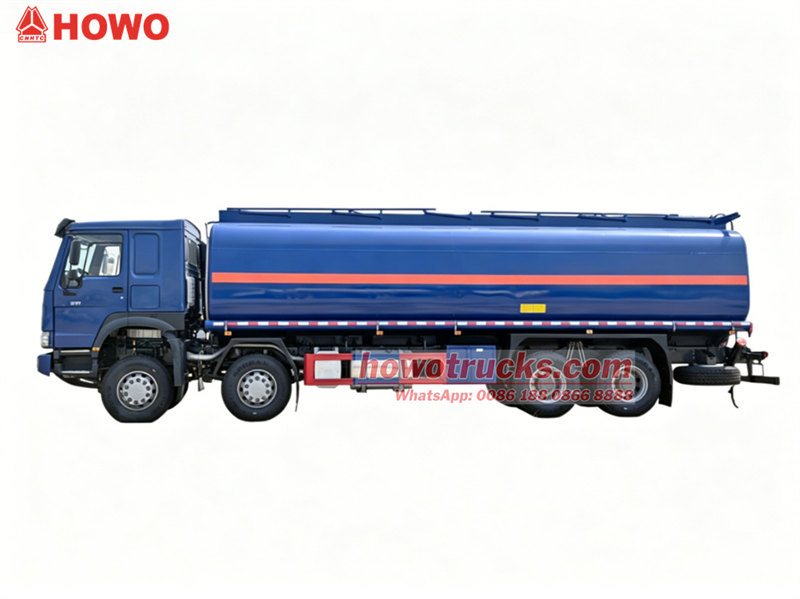

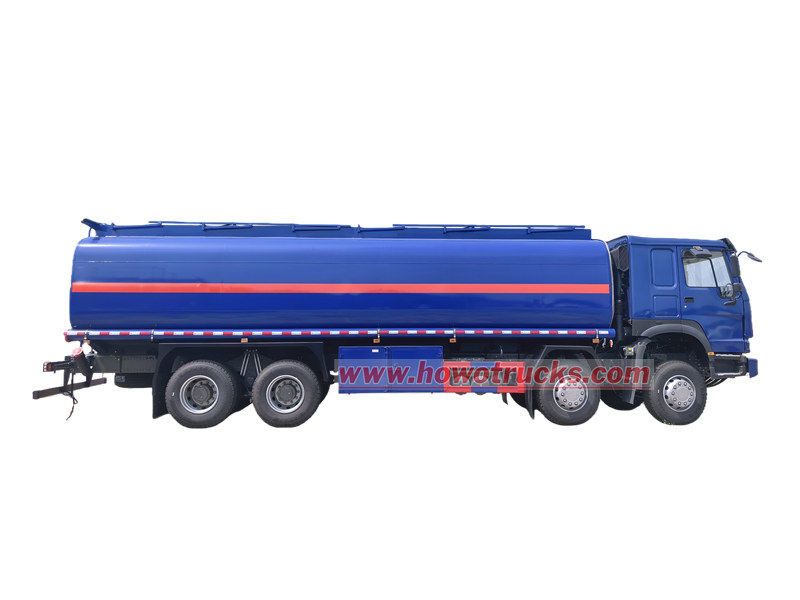

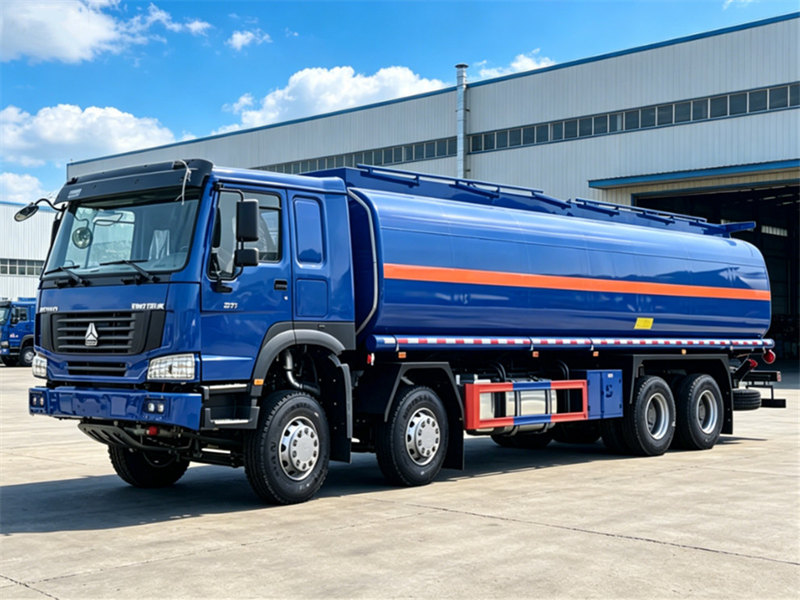

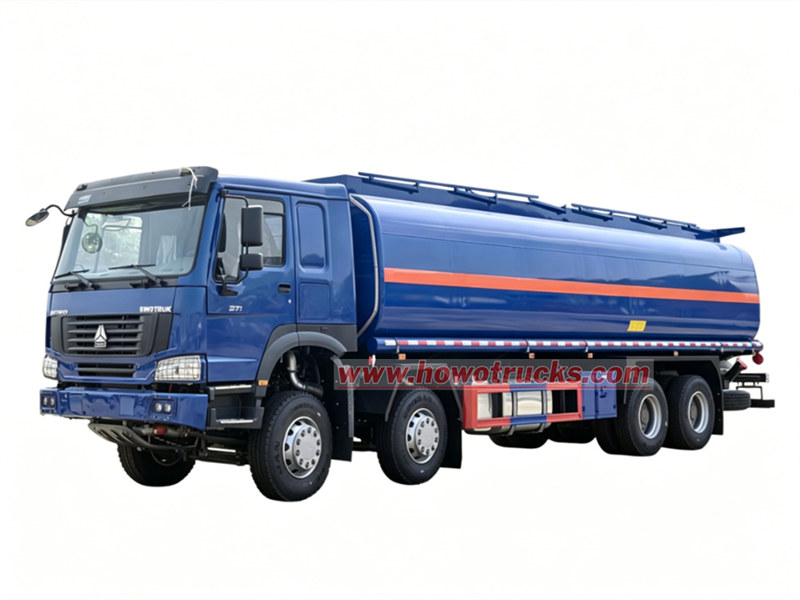

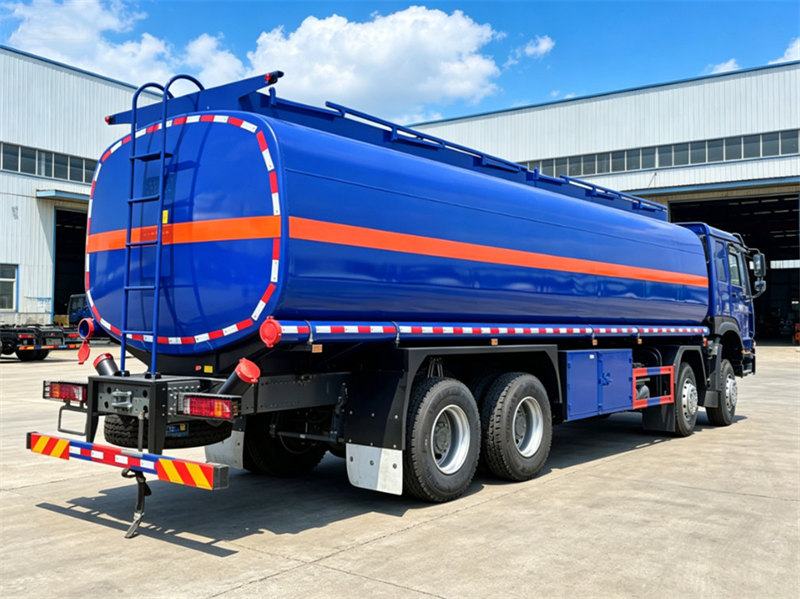

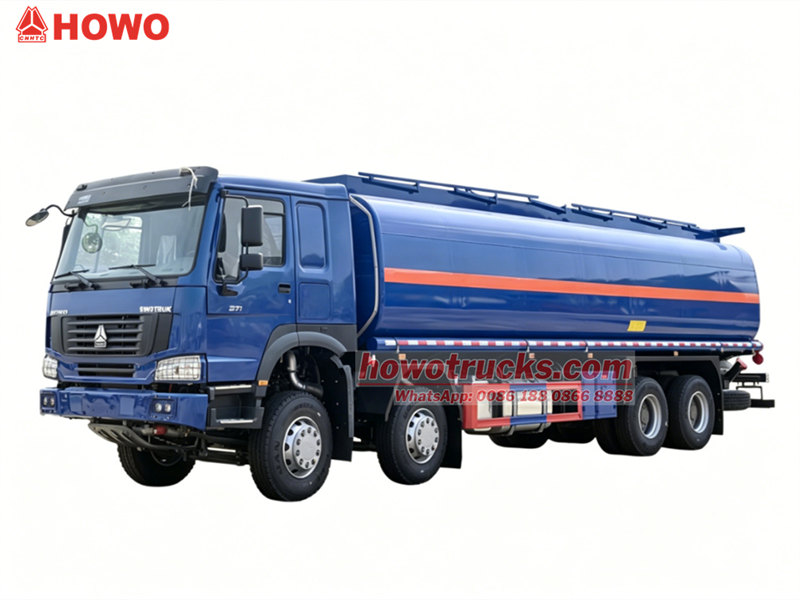

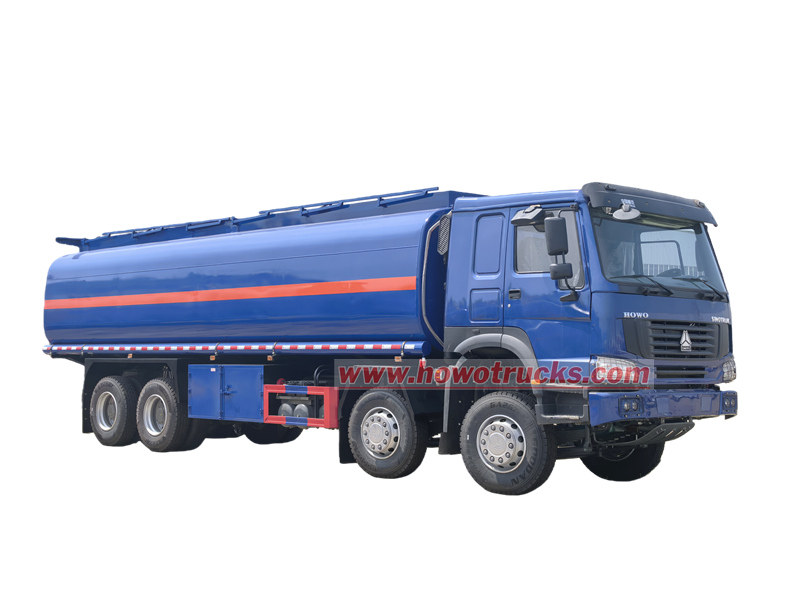

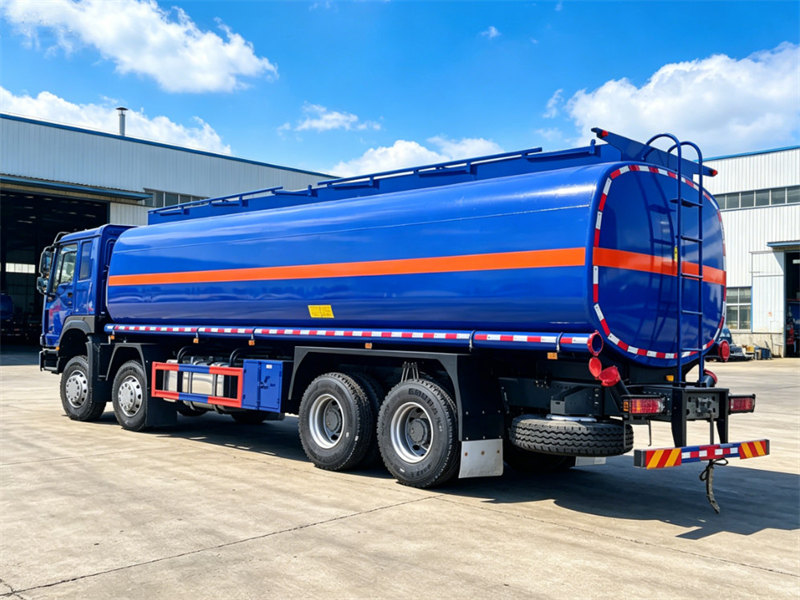

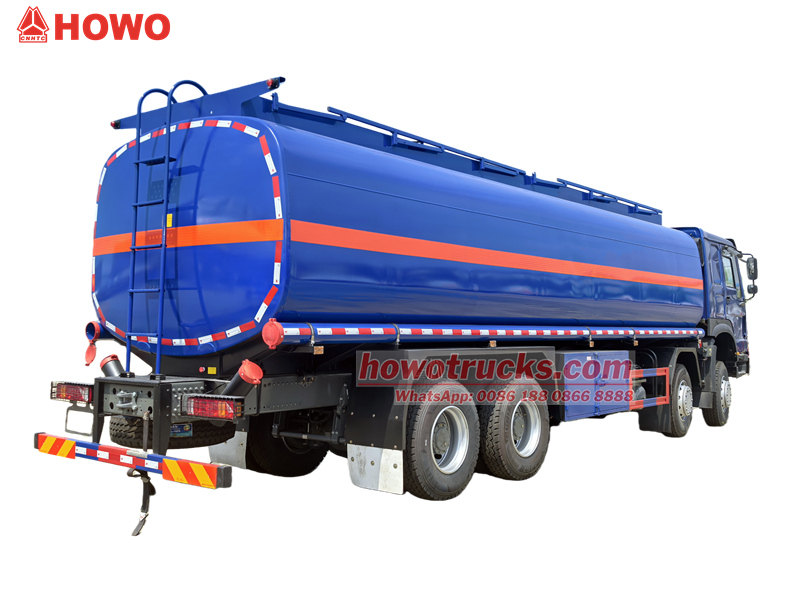

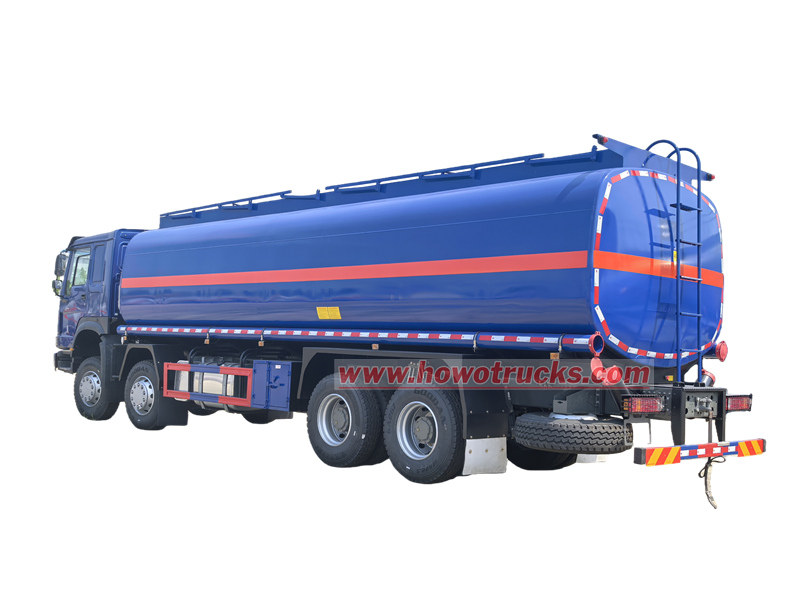

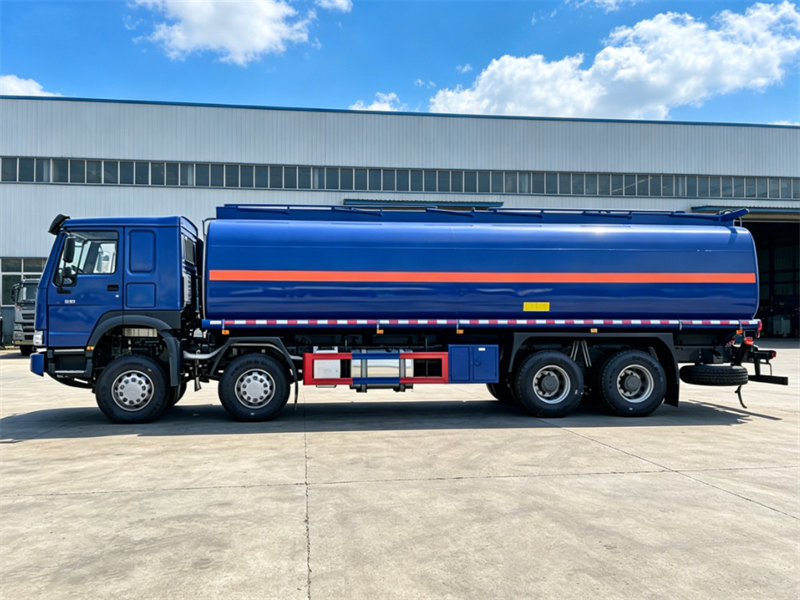

*HOWO Heavy 30000L Fuel Tank Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in HOWO truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
▶ 1. Large Loading Capacity & Robust Chassis Performance
Equipped with a reliable HOWO 8X4 four-axle heavy-duty chassis, 33,000kg maximum gross weight, 30,000L large-capacity tank and 12.00R20 heavy-duty tires.
▶ 2. Powerful & Reliable Diesel Powertrain
Powered by a 12L 400HP WP12S400E201 diesel engine complying and paired with a 10-speed manual transmission, the truck delivers stable, strong power and a 95km/h maximum speed.
▶ 3. High-Strength Tank Body & Complete Safety Configuration
Adopting high-strength Q345 carbon steel tank with great pressure and corrosion resistance, the tanker is fitted with a 7m suction head fuel pump, anti-static reinforced hoses and a full set of standard safety accessories.
▶ 4. Flexible Customization & Wide Application
Supporting diverse customizable configurations including multi-compartment design, alternative tank materials, imported pumps, metering & refueling devices as well as heating and bottom loading systems.
✦ Ⅱ.Product Parameter For HOWO NX Fuel Tank Truck « « «
|

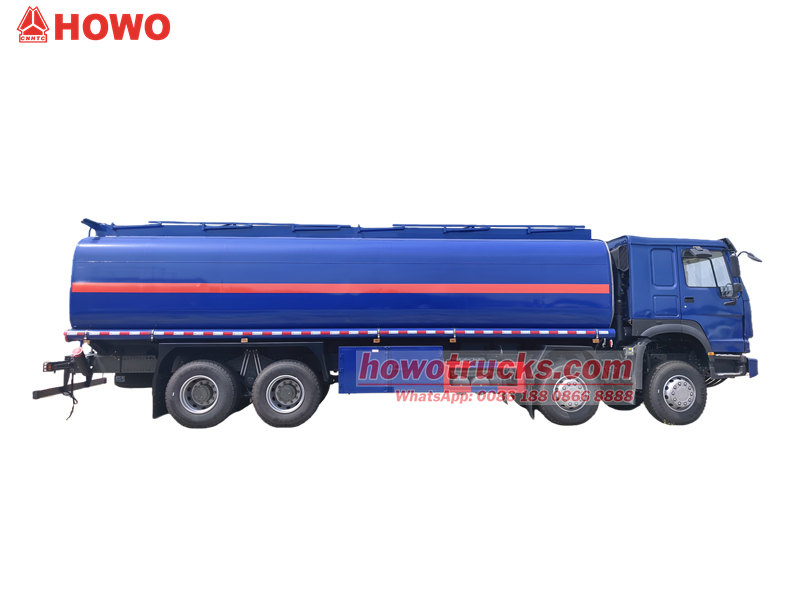

HOWO Heavy 30000L Steel Tanker Fuel Truck |
||
|
General |
Vehicle Brand |
CEEC TRUCKS |
|
Chassis Brand |
HOWO |
|
|
Overall Dimension |
10800 * 2530 * 2950 mm |
|
|
GVW / Kerb Weight |
33,000kg / 16,800kg |
|
|
Cab |
Cab Capacity |
2 people allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
WP12S400E201 |
|
|
Power |
400 HP |
|
|
Displacement |
12 L |
|
|
Emission Standard |
Euro 3 |
|
|
Chassis |
Drive Type |
8X4 (left/right hand drive) |
|
Transmission |
Manual 10 speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
1750+4600+1350 mm / 4 |
|
|
Tire Specification |
12.00R20 |
|
|
Tire Number |
12 tires and 1 spare tire |
|
|
Max Speed |
95 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Body capacity |
30,000 Litres |
|
Tanker Material |
Carbon Steel (Q345) |
|
|
Pump |
Fuel pump equipped for overhead delivery |
|
|
Suction head |
7 m |
|
|
Hose |
High quality, wire strengthened hose, with cooper wire, anti-static |
|
|
Refueling Machine |
Equipped based on customer requirement |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers... |
||
|
Optional |
** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker). ** It can be divided into many compartments. ** Imported American pump as optional. ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
✦ Ⅲ. Advantage For HOWO Fuel Tank Truck « « «
Power and Heavy-Duty Performance Advantages:
♦ Powerful Engine for Complex Working Conditions: Equipped with an WP12S400E201 engine, delivering ample 400 horsepower, providing strong starting and climbing capabilities even on muddy, steep, and unpaved roads in regions like Africa.
♦ Compliant Heavy-Duty and Stable Load Bearing: With a gross vehicle weight of 25 tons and a tank volume of 20,000 liters, featuring a Q345 carbon steel tank body and 5mm thickened tank walls, it boasts strong load-bearing capacity and structural stability, meeting the needs of large-scale oil transfer.
♦ Highly Reliable Transmission System: The HW19710 10-speed gearbox with a reinforced clutch offers high transmission efficiency, durability, and a low failure rate under frequent start-stop and heavy-duty conditions.
Tank Body Structure:
♦ Customizable tank shapes: round, oval, rectangular and trapezoidal for diverse applications.
♦ The top comes complete with a manhole cover, breather valve, oil vapor recovery system and guardrails. A φ500 access opening is reserved for easy maintenance.
♦ It features a bottom sediment tank and rear drain valve, alongside ladders and walkways for safe operation.
♦ Internal cross baffles effectively reduce liquid sloshing during driving and enhance transport stability.
✦ Ⅳ.Fuel Pump System for HOWO Fuel Tank Truck « « «
♦ The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.
♦ The oil pump is connected to the chassis via a pump mounting bracket.
 |
 |
♦ Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.
♦ Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.
|
Circular Arc Gear Oil Pump |
|
|
Model |
80YHCB-80 |
|
Pressure |
0.7 MPa |
|
Flow |
80 m³/h |
|
Power Supplied |
11 KW |
|
Rotational Speed |
1170 r/min |

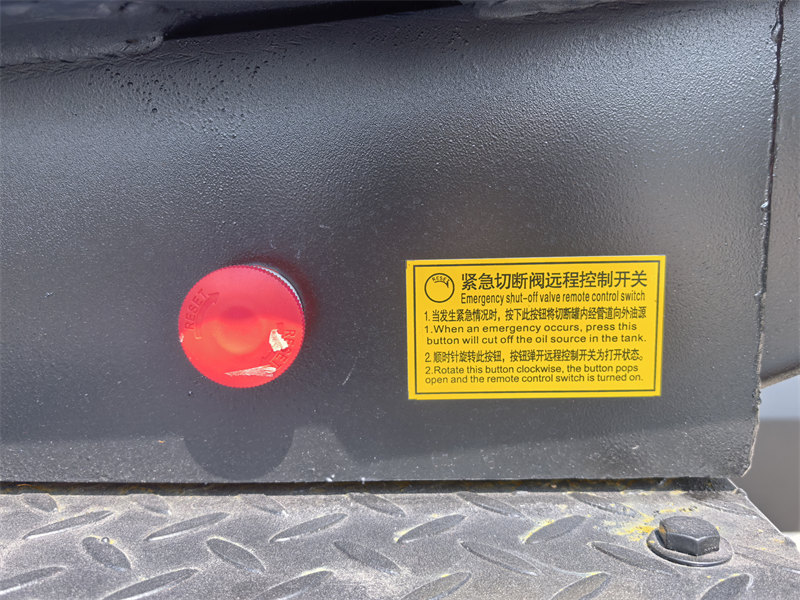

✦ Ⅵ.HOWO Fuel Truck Safety Protection Devices « « «
♦ The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.
♦ A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank. This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.
♦ To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.
♦ Fire extinguishers are provided on both sides of the oil tank.
✦ Ⅴ.HOWO Fuel Bowser Truck Pipeline Operation System « « «

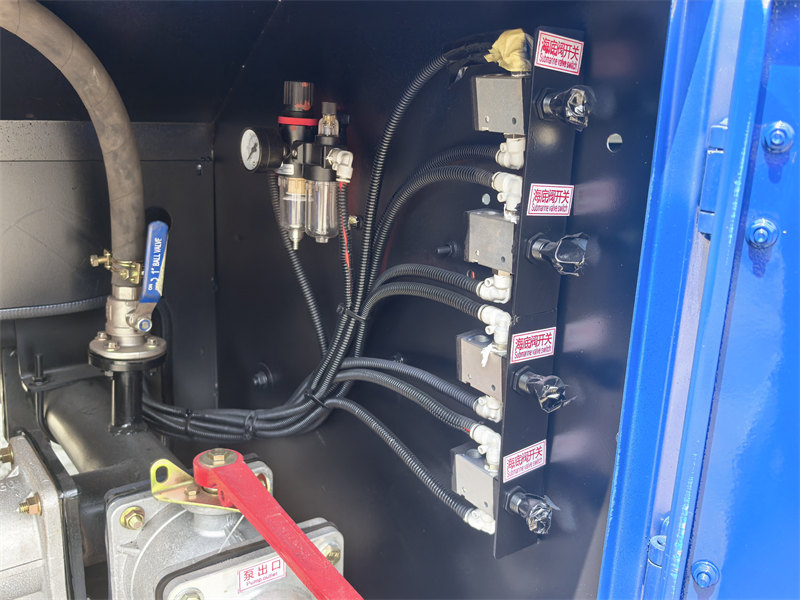

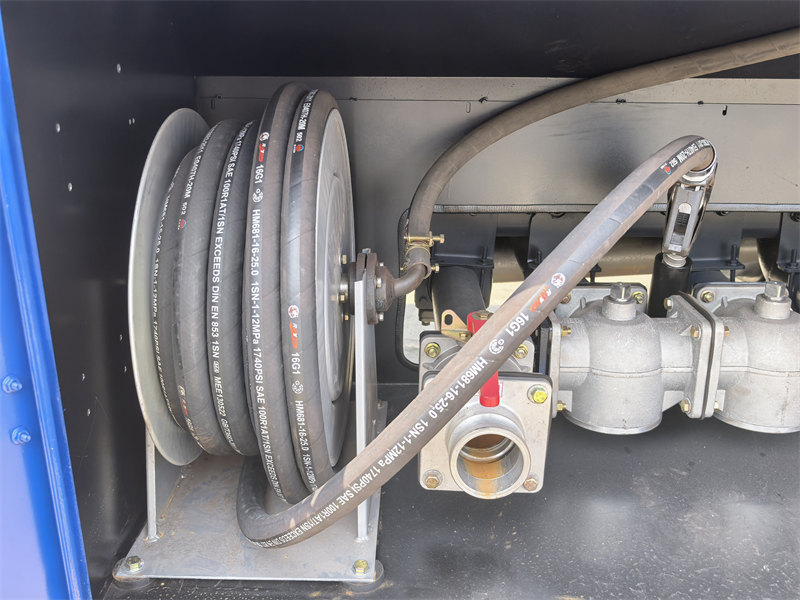

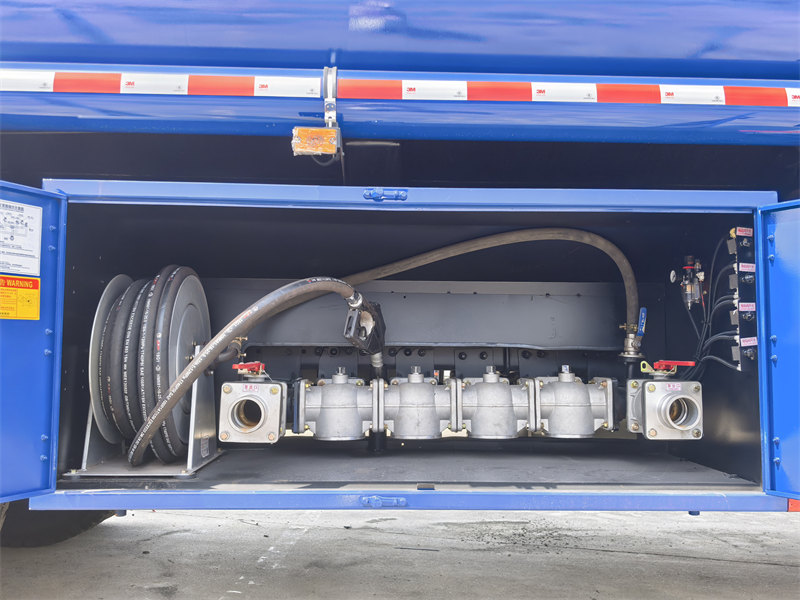

The control box is mounted at the tank lower section, integrating three-way ball valve, flow meter, dual filters, CRJ quick couplings, pressure and vacuum gauges.Dedicated gauges monitor pump inlet vacuum and outlet pressure in real time, keeping the oil delivery system operating stably.
♦ Pump out:
(1) Turn the four-position three-way ball valve mark point to the direction of forward B);
Note: four-position three-way Ball Valve marks the direction of the direction of the valve closed, the other two sides for each other
(2) Open two-way Ball Valve 1to pump oil;
(3) If using a refueling machine,close the two-way Ball Valve 1 and open the small copper valve,according to the specification of the tefueling machine set procedures can be achieved refueling refueling machine.
♦ Pump in:
(1) Connecting the two-way Ball Valve 2 with an oil pipeline and an oil source;
(2) After turning the mark point of the four-position three-way ball valve to(c).the other valves are closed to realize self-priming.
(3) Other functions:The user can adjust and realize various functions according to the oll circult principle.
✦ Ⅵ.HOWO Fuel Bowser Truck Pipeline Operation System « « «
1. Large 30,000L Optimized Tank Capacity & Payoff Efficiency
♦ Standardized 30,000L tank volume balances maximum liquid fuel load and cross-border road weight compliance for most global markets.
♦ Segmented anti-sloshing baffle design inside the tank drastically reduces liquid surge during acceleration, braking and cornering. This enhances driving stability and cuts wear on chassis components.
♦ Maximized single-trip transport volume slashes delivery frequency, lowering overall fuel, labor and logistics operational costs for fuel distributors.
2. Heavy Duty Robust Chassis Built for Diverse Global Road Conditions
♦ Reliable heavy duty 8x4 commercial truck chassis with powerful, low-emission engine options adaptable to different national emission standards.
♦ Reinforced suspension and heavy-load wheel hubs deliver outstanding load-bearing performance, capable of handling rough rural, suburban and urban road networks across Africa, Southeast Asia and Latin America.
♦ Mature brake system including ABS and dedicated retarder for stable, safe braking under full 30,000L loaded weight, meeting international hazardous goods transport safety codes.
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional HOWO fuel tank truck supplier and exporter. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
